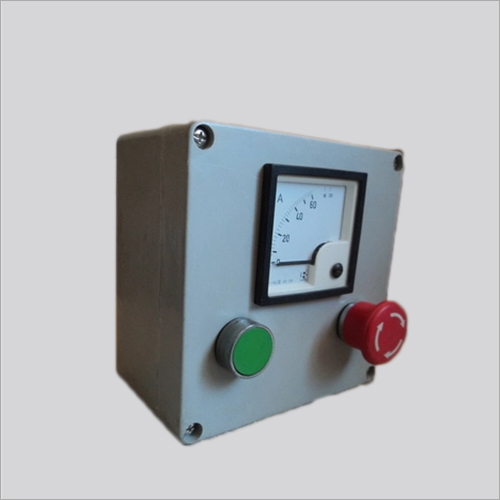

FRP Electric Junction Box

Get a Price/Quote

Product Details:

Thermal Conductivity Low, approx. 0.25 W/mK
Usage & Applications Electrical wiring, cable management
GSM 550 GSM
Temperature -40C to 120C
Glass Type E-glass
Shape Rectangular
Thickness 5 mm
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

FRP Electric Junction Box Price And Quantity

Minimum Order Quantity 100 Piece

FRP Electric Junction Box Product Specifications

Material FRP
Temperature -40C to 120C
Surface Treatment Gel Coat Finish
Usage & Applications Electrical wiring, cable management
GSM 550 GSM
Thermal Conductivity Low, approx. 0.25 W/mK
Dimension (L*W*H) 180 mm x 120 mm x 100 mm
Technique Hot Rolled
Application Home and Industrial
Glass Type E-glass
Coating Type UV Resistant Coating
Thickness 5 mm
Shape Rectangular
Density 1.8 Gram per cubic centimeter(g/cm3)

FRP Electric Junction Box Trade Information

Payment Terms Cash on Delivery (COD), Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 1000 Piece Per Day
Delivery Time 1-30 Days
Sample Available Yes
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Main Export Market(s) Australia, Middle East, Africa, Western Europe, South America, Asia, Central America, Eastern Europe, North America
Main Domestic Market All India

Product Description

Keeping in-depth knowledge in this particular domain, we are engaged in manufacturing and exporting FRP Electrical Junction Box. Made up of tested quality fiberglass and polyester resin, these junction boxes are available in varied specifications. In order to ensure the quality & finish, these electrical junction boxes are duly checked by our quality inspectors on different quality norms. FRP Electrical Junction Box is broadly used in street light, local control station and pole box.

Features:

Water resistance
Easy to install
Light weight

FRP JUNCTION BOX SIZES:

Sr No.	Cat No.	JUNCTION BOX SIZES	THICKNESS
1	HSJB 10012080	100mm W x 120mm H x 80mm D.	3mm
2	HSJB 12016085	120mm W x 160mm H x 85mm D.	3mm
3	HSJB 12012090	120mm W x 120mm H x 90mm D.	4mm
4	HSJB 16016090	160mm W x 160mm H x 90mm D.	4mm
5	HSJB 150210100	150mm W x 210mm H x 100mm D.	3mm
6	HSJB 200250125	200mm W x 250mm H x 125mm D.	4mm
7	HSJB 225325150	225mm W x 325mm H x 150mm D.	4mm
8	HSJB 300400175	300mm W x 400mm H x 175mm D.	4mm
9	HSJB 350500190	350mm W x 500mm H x 190mm D.	4mm
10	HSJB 425610215	425mm W x 610mm H x 215mm D.	4mm
11	HSJB 525725275	525mm W x 725mm H x 275mm D.	4mm

Advanced Protection for Electrical Installations

Engineered with a robust FRP body and flame retardant V-0 grade, this junction box guarantees safeguarding for electrical wiring under harsh conditions. The IP65 rating and UV-resistant coating defend against moisture, dust, and sunlight, ensuring reliable operation in both indoor and outdoor applications.

Optimal Design and Easy Mounting

This junction box features a rectangular shape with screw-fastened lid and eight cable knockouts, allowing effortless management of wiring and easy surface or wall mounting. The compact yet sturdy 760 g structure fits seamlessly in varied environments, supporting flexible installation.

Compliance and Superior Performance

Manufactured to IEC 61439 and IS 14759 standards, each unit delivers excellent electrical insulation and thermal stability. The hot rolled technique and gel coat finish provide strong resistance to corrosion and weathering, making it fit for rigorous home and industrial workloads.

FAQs of FRP Electric Junction Box:

Q: How is the FRP Electric Junction Box mounted?

A: The junction box is designed for wall-mounted or surface-mounted installation. Pre-marked mounting points allow for secure attachment, making it ideal for various home and industrial setups.

Q: What environmental conditions can this junction box withstand?

A: This box operates reliably between -40C and 120C. The IP65 ingress protection, UV-resistant coating, and weather-resistant FRP material shield electrical connections from dust, water, sunlight, and corrosion.

Q: When should I use this FRP Electric Junction Box instead of a standard plastic box?

A: Opt for this FRP junction box when you need enhanced corrosion and weather resistance, superior flame retardancy (V-0 grade), and excellent electrical insulationespecially in demanding or outdoor environments.

Q: Where is this junction box typically applied?

A: It is used in residential and industrial electrical wiring, cable management, and junction points, particularly where moisture, chemical exposure, or direct sunlight are concerns.

Q: What process ensures the boxs durability and electrical safety?

A: Manufactured using the hot rolled technique and gel coat surface treatment, the box achieves structural integrity, corrosion resistance, and meets IEC 61439/IS 14759 standards for electrical safety.

Q: How do the cable knockouts enhance usage?

A: Eight knockouts are built into the box, allowing convenient and flexible entry points for cables. This simplifies wiring and expansion, making installation and future modifications easier.
